100 Watt 12 Volt Extremely Flexible Monocrystalline Solar Panel

100 Watt 12 Volt Extremely Flexible Monocrystalline Solar Panel

2 customer reviews
Sold: 1

$128.69$171.92

Color, Ships From
Choose an option / Choose an option
100 Watt 12 Volt Extremely Flexible Monocrystalline Solar Panel Consumer Electronics Solar Panels & Chargers cb5feb1b7314637725a2e7: Desert Camouflage|Digital Camouflage|NEW 2x50w|NEW 2x50w|Snow Camouflage|Green Camouflage

$128.69$171.92

Availability: 2773 in stock

Clear
Add to cart
Buy Now
SKU: 1005003575850022 Categories:

Product Description

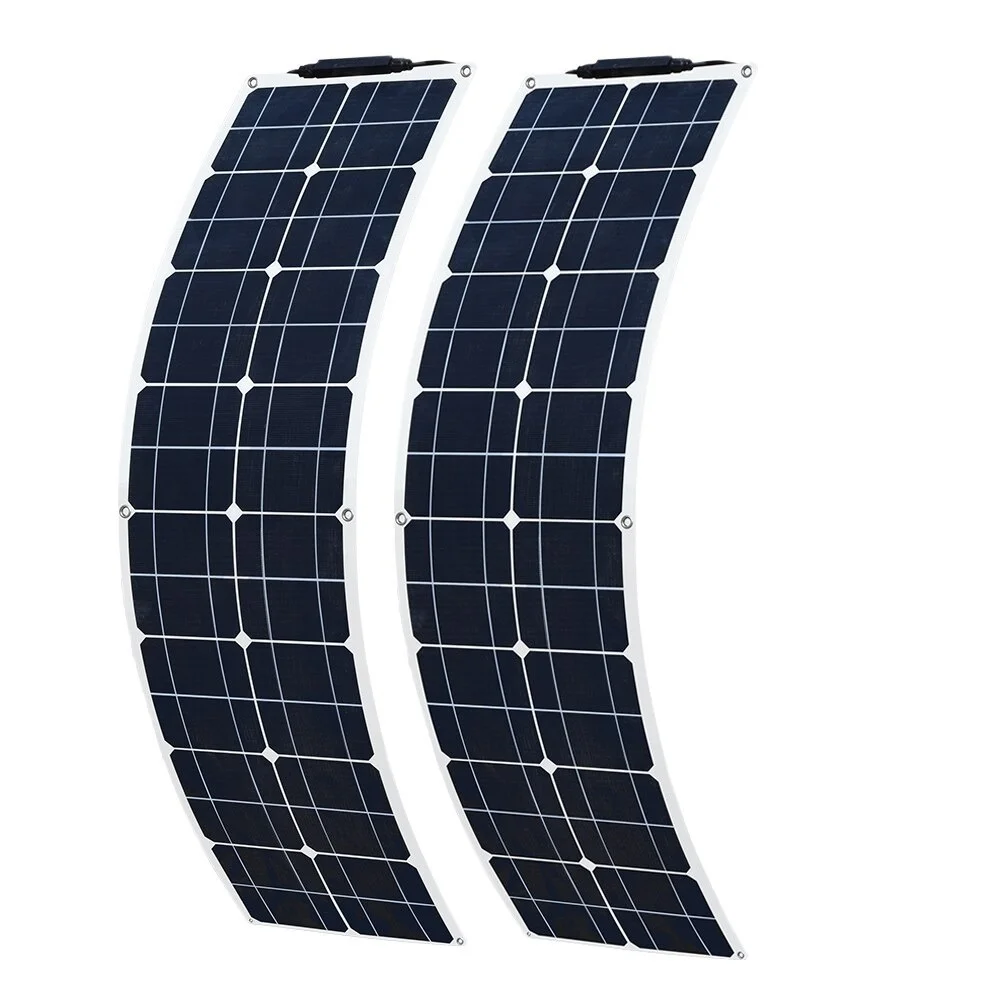

100 Watt 12 Volt Extremely Flexible Monocrystalline Solar Panel 2 pcs 50w Ultra Lightweight Thin for RV Boats Car Battery Charge

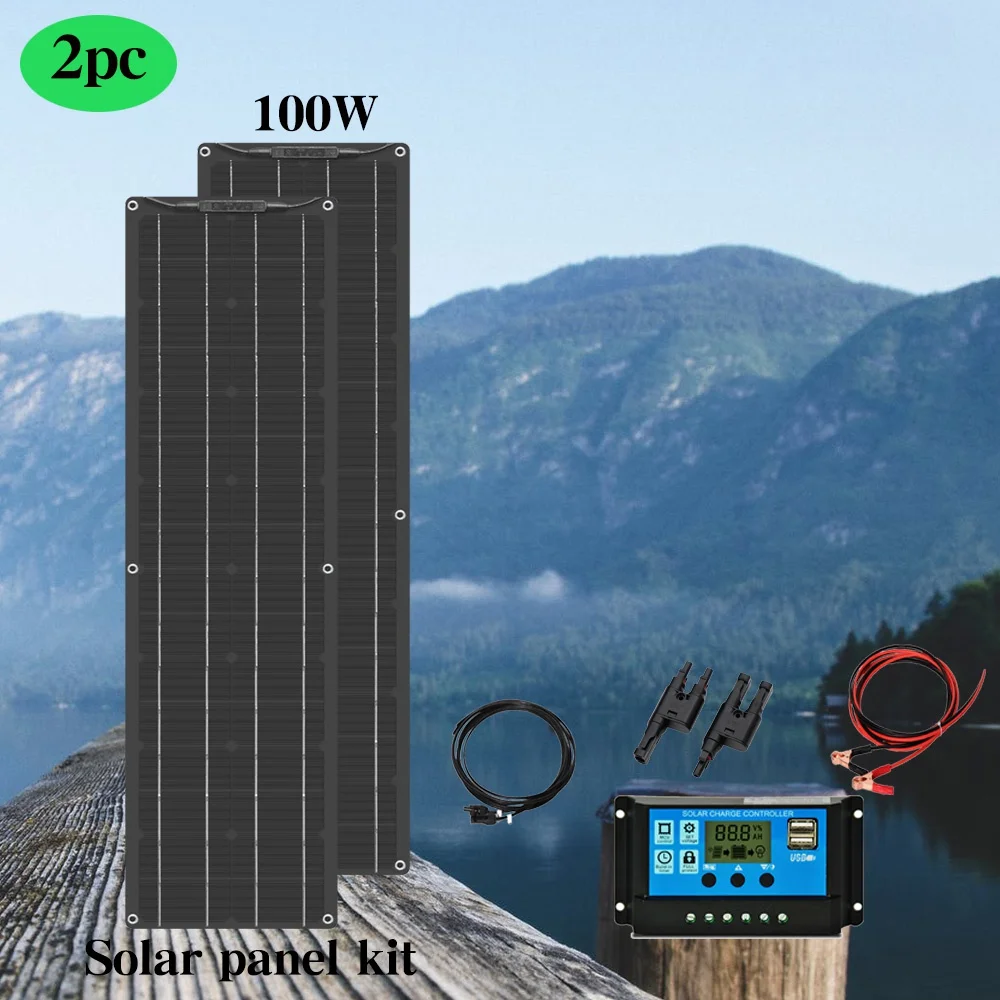

Package including:

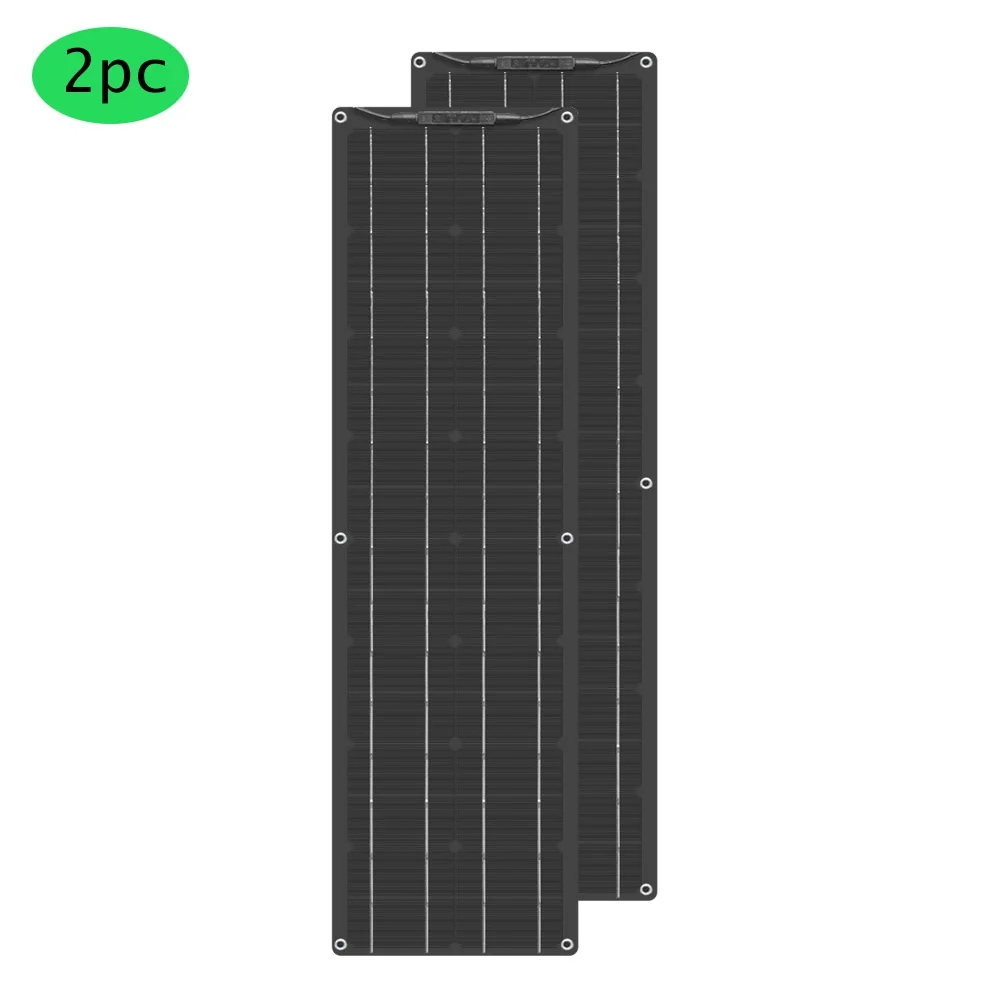

2 X Solar Panel
optional:
1X PV Connector Controller

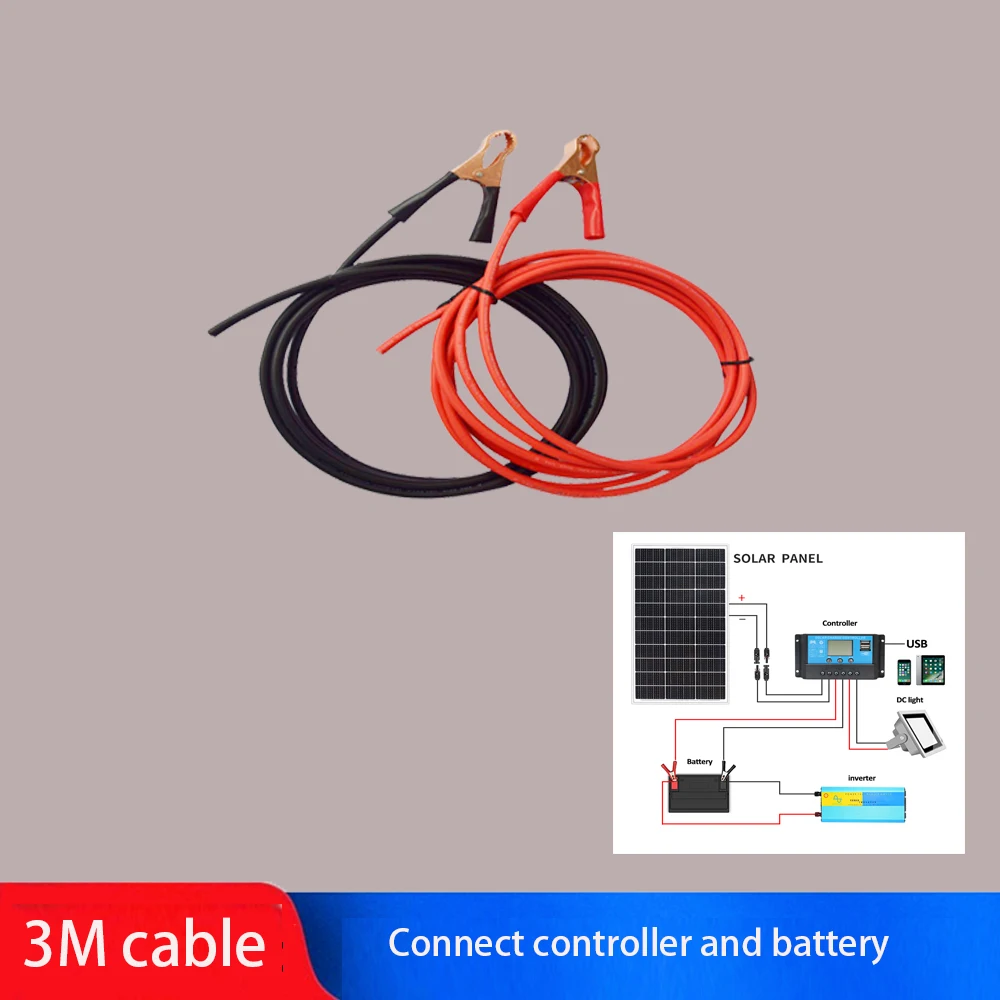

1X 3M 2.5mm² alligator clips cable

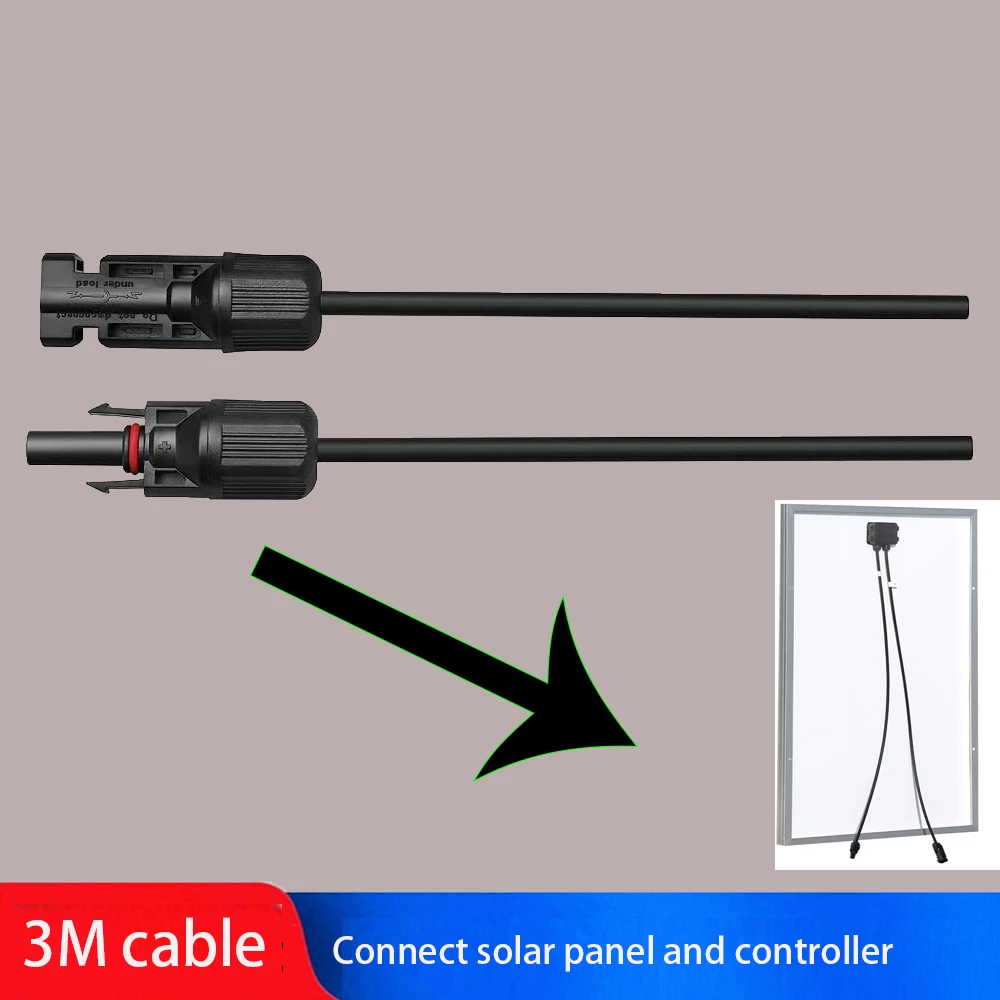

1X 3M 2.5mm² MC4 connector cable
1X 2 in 1 adapter

Features:
High efficiency, conversion rate 21-25%,

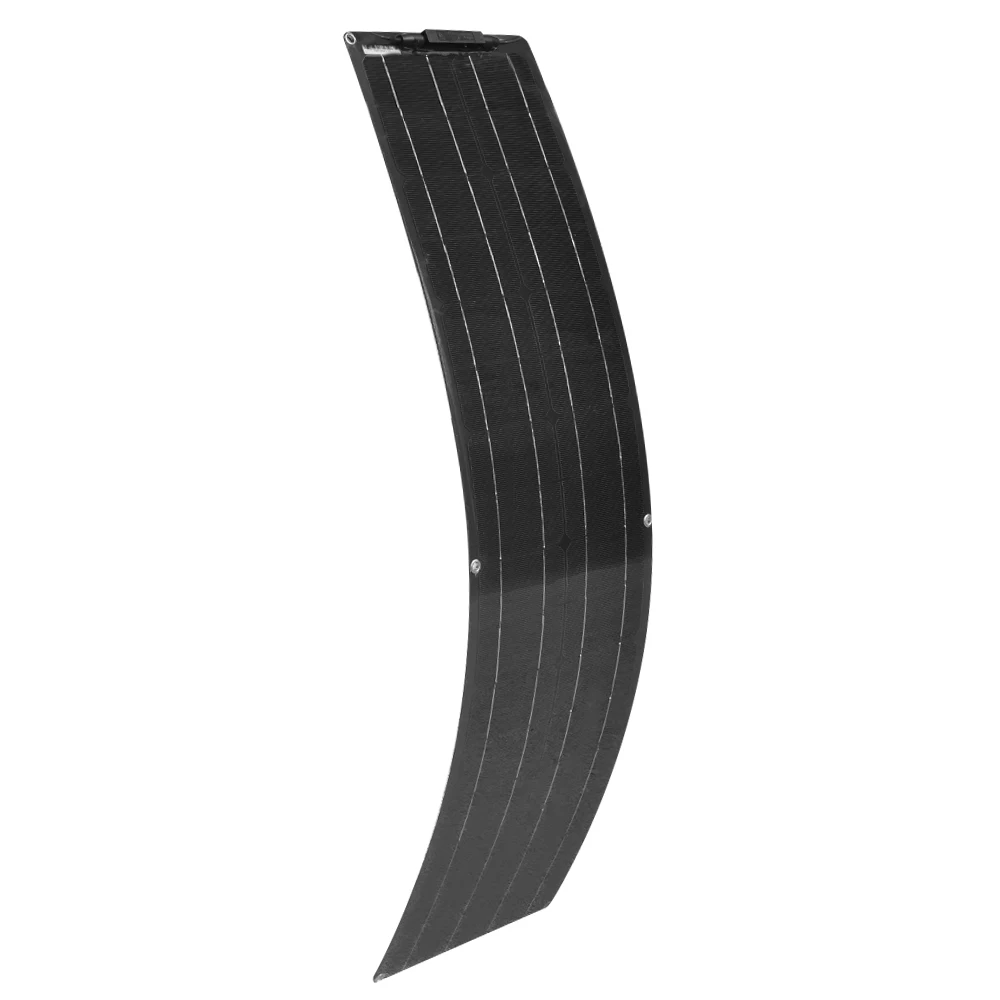

Flexible, suitable for surface mounting.
Light weight and easy to install & maintain.
Wide range of adaptation: Charging cars, boats, roofs, outdoors, mountains, grasslands, etc.
Specifications:
Maximum power(Pmax) 50W
Output tolerance ± 3%
Maximum system voltage 700V DC
Open circuit voltage(Voc) 19.2V
Maximum power voltage(Vmp) 16V
Cell efficiency 21-25%
Operating temperature(NOCT) 45±2℃
Temperature range -40℃~+80℃
Number of cells 32pcs
Weight 1030g

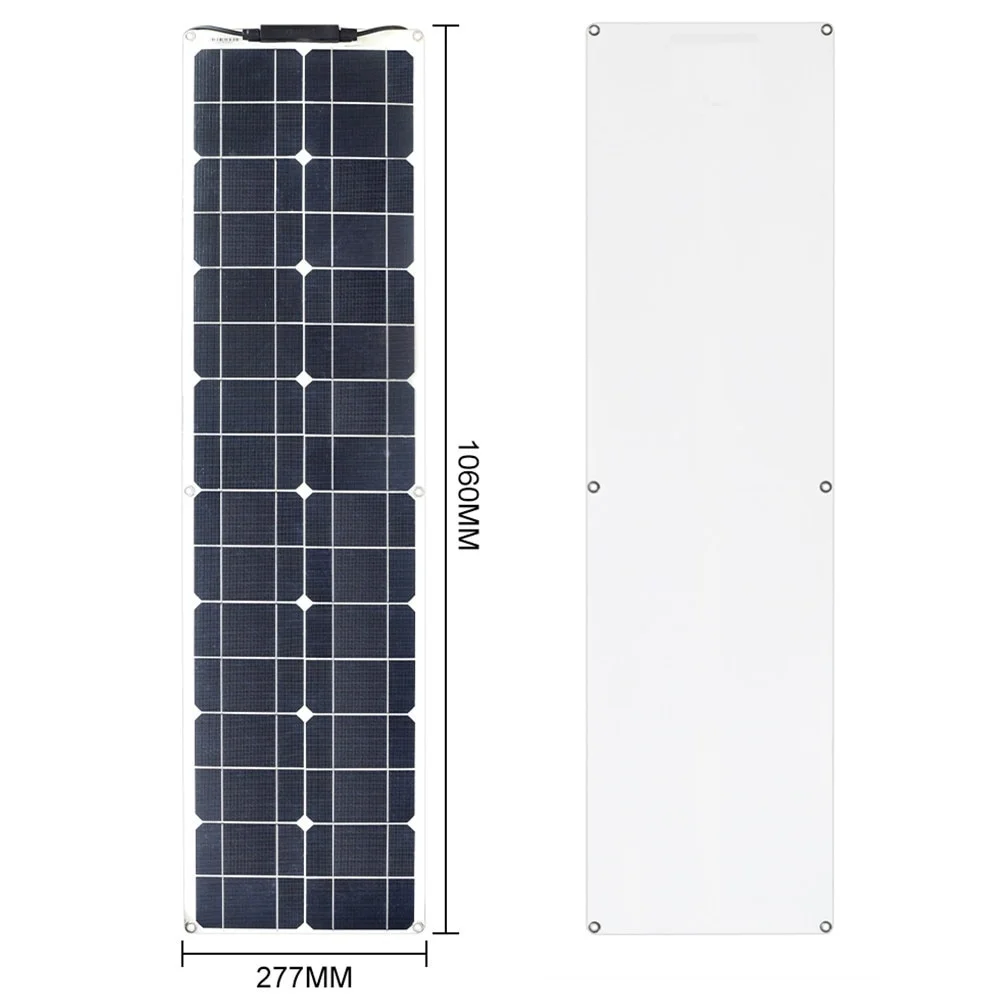

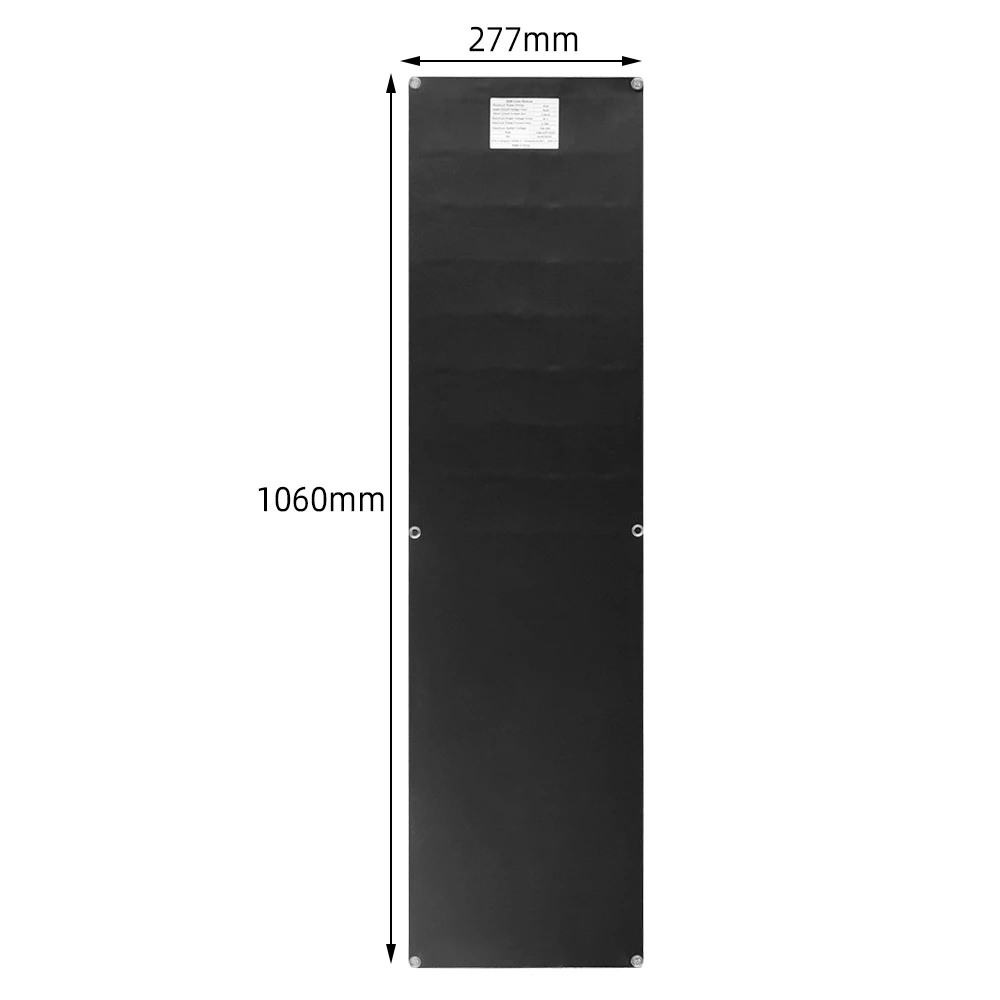

Size 1060*277*3 mm
Color Black/white
Standard Test Conditions : lrradiance 1000w/m²,Temperature 25℃, AM=1.5

Attention:
Please confirm your address and contact information, if you have any problem, please contact us by email,Our Email address: b2c11@isolarpartner.com
Our price doesn't including the import customs duties, the buyer should cooperate with the logistics company for the customs clearance.

Details:
1. Select high-efficiency monocrystalline silicon solar cells, the power generation efficiency is about 1.2 times that of conventional polysilicon, and the overall area is smaller at the same power.
2. Using the latest component packaging technology, thinner, lighter, softer and longer life.
3. The surface is made of PET and treated with a special process, which is more wear-resistant and improves the absorption efficiency of sunlight.
4. With high light transmittance, safe and reliable, not afraid of high temperature, no danger of burning or explosion.

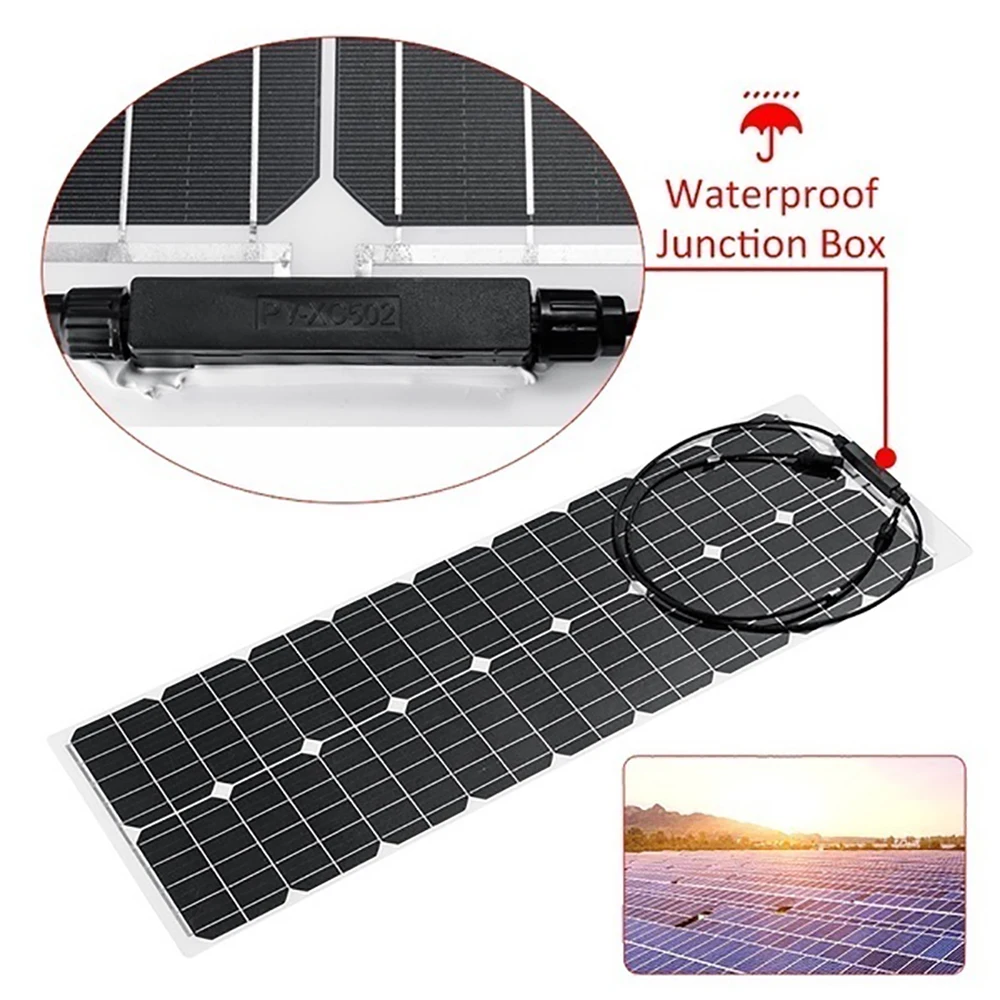

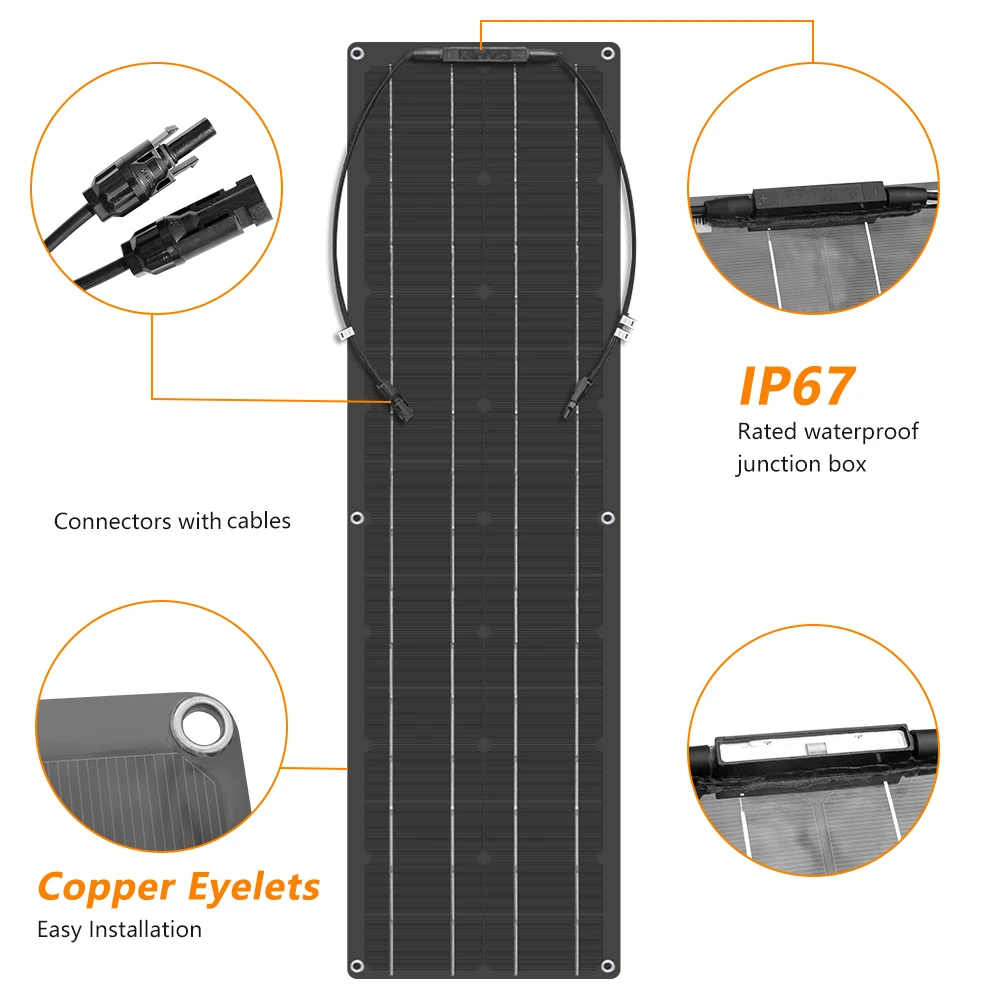

5. The junction box adopts IP67 waterproof design, contains bypass diode, and the circuit adopts overcharge and reverse current protection design.
6. Use photovoltaic special cable and MC4 connector, outdoor use is safe, waterproof, high temperature resistance and weather resistance. MC4 connector is easy to use, plug and play.

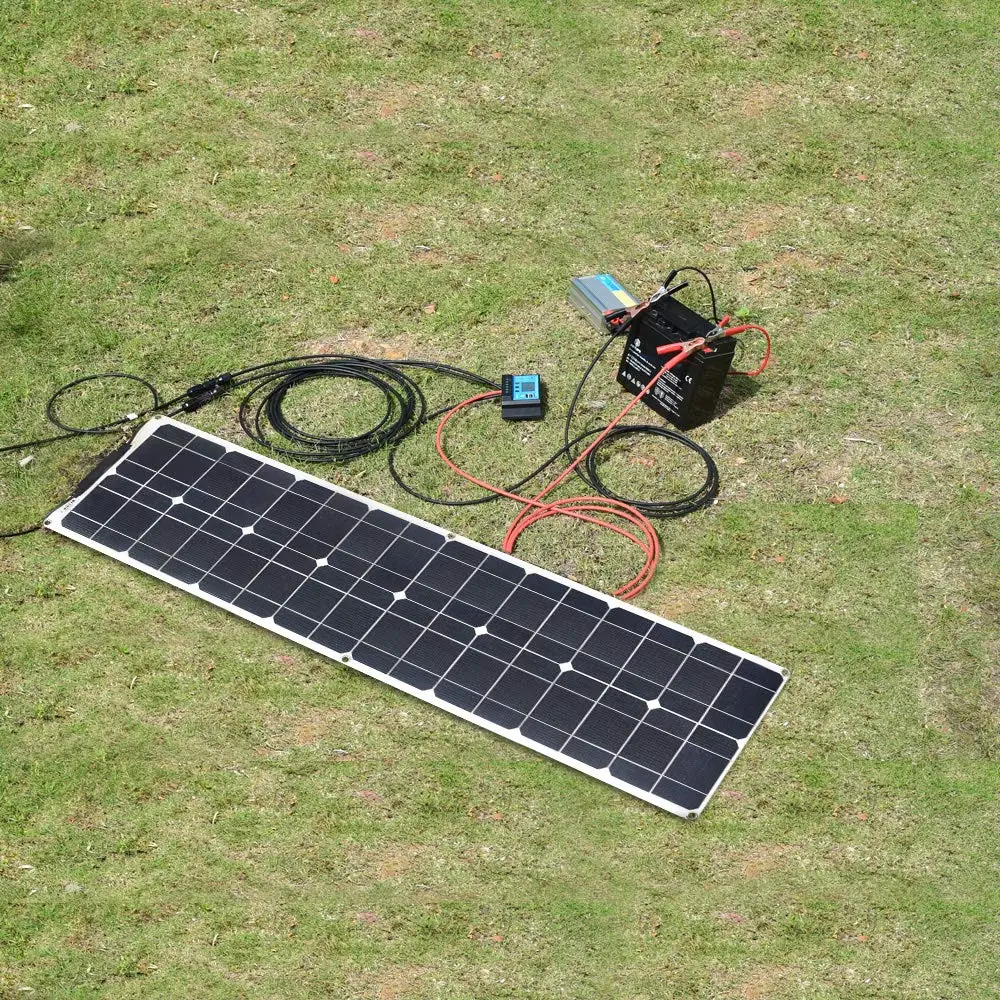

7. This product is a solar module. It is recommended to be used with controllers and batteries. It can be used in various scenarios such as households, camping, RVs, yachts, street lights and solar power stations.

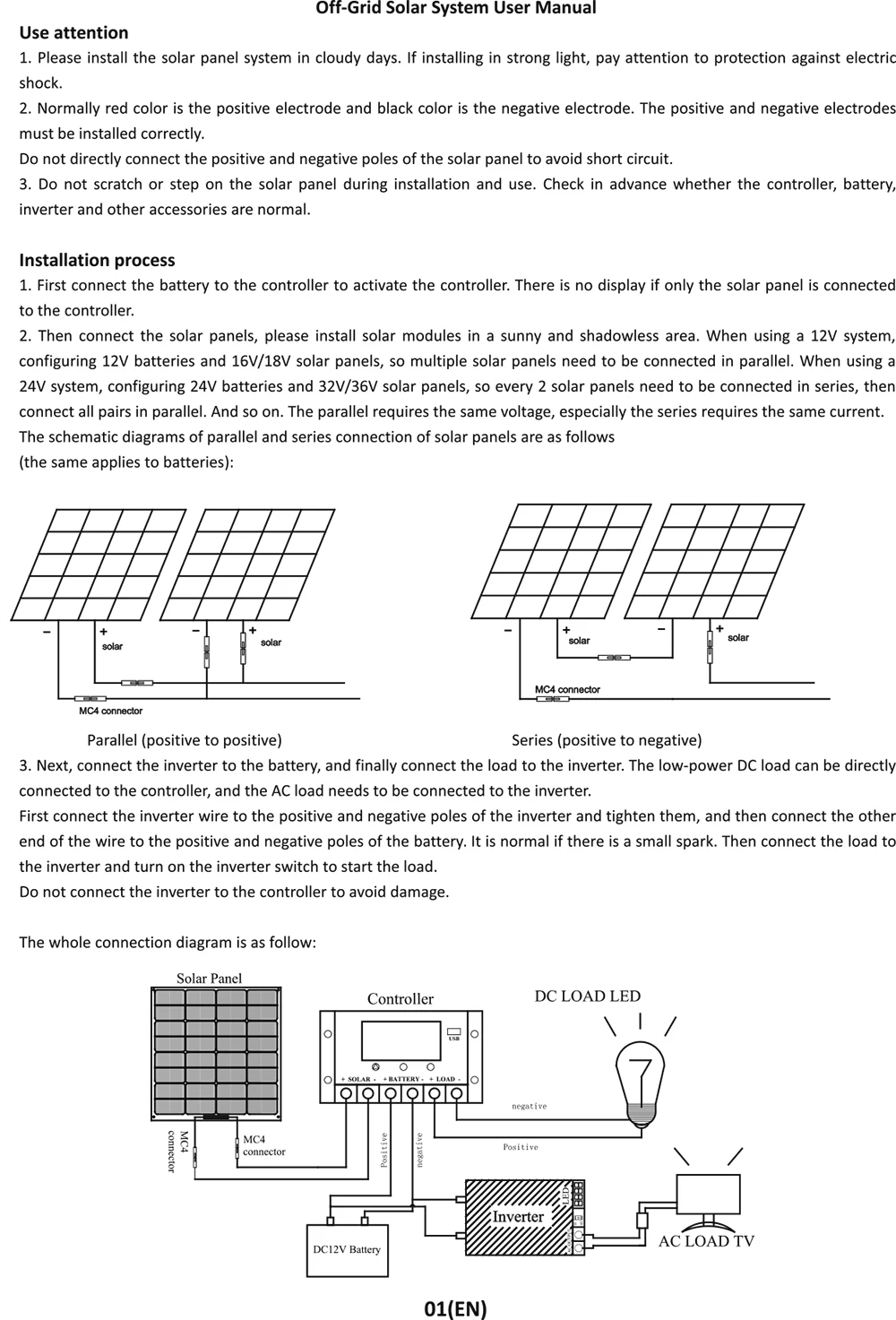

Notes for use:
1. This product must not come into contact with highly corrosive substances.
2. It is strictly forbidden to modify, disassemble, drop, and hit the junction box and products by yourself, avoid stepping on the surface and scratching the surface with hard objects during use.
3. A large number of scratches or dirt on the surface of the solar panel may cause the solar cell module to be inefficient, and in severe cases may cause burnout.
4. The suitable ambient temperature range of this product: -20 ° C-80 ° C, please do not exceed this range.
5. The solar panel must be installed in an area with good sunlight and no shadow. The long-term work of the solar cell module in the sun with shadow may have the risk of burning.
6. It is forbidden to connect the positive and negative poles of the product together, and it is forbidden to put the product into water or fire, otherwise it will damage the product.

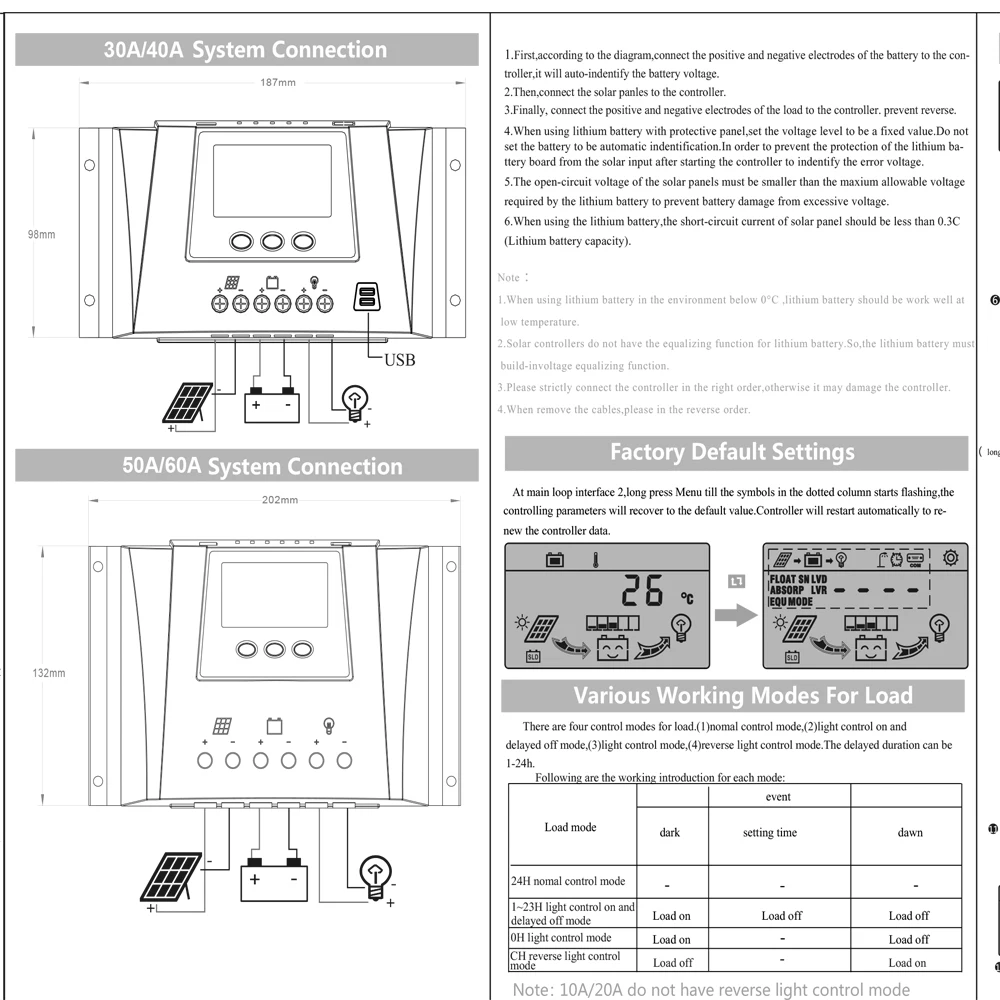

7. The overall power of the photovoltaic module must be less than the rated power of the controller (rated voltage × rated current). It is strictly prohibited to overload the controller.
8. The total voltage of the photovoltaic module connected to the controller must be within the photovoltaic input voltage range of the controller.
9. The inverter can only be connected to the battery, not directly to the controller.

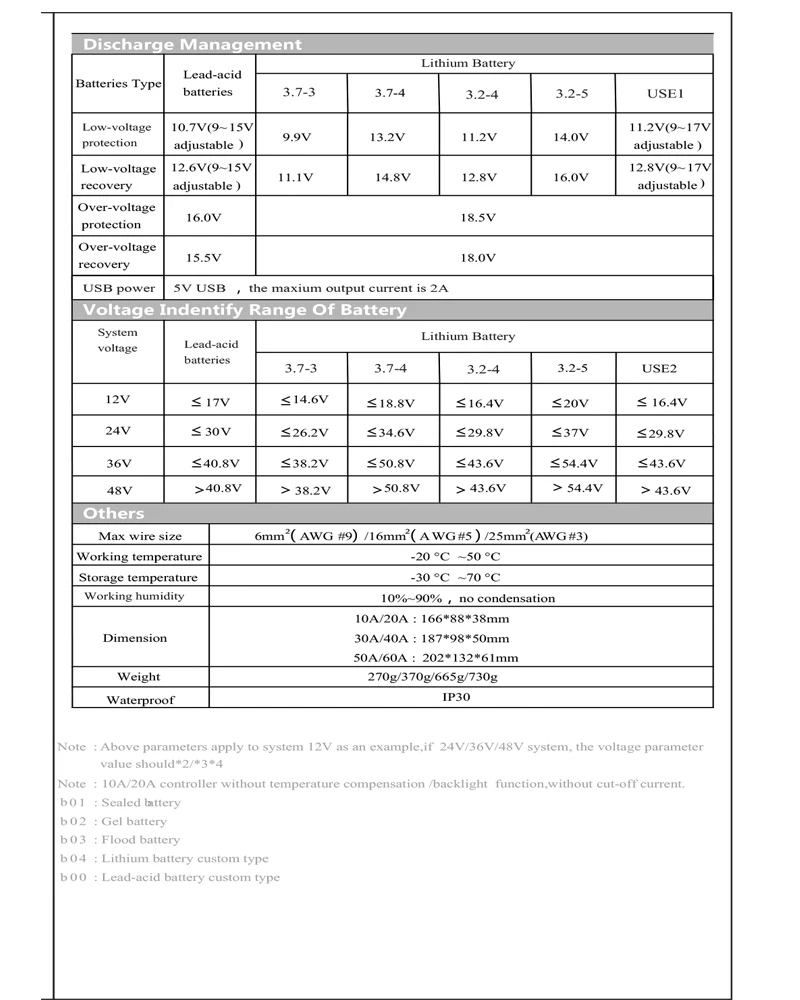

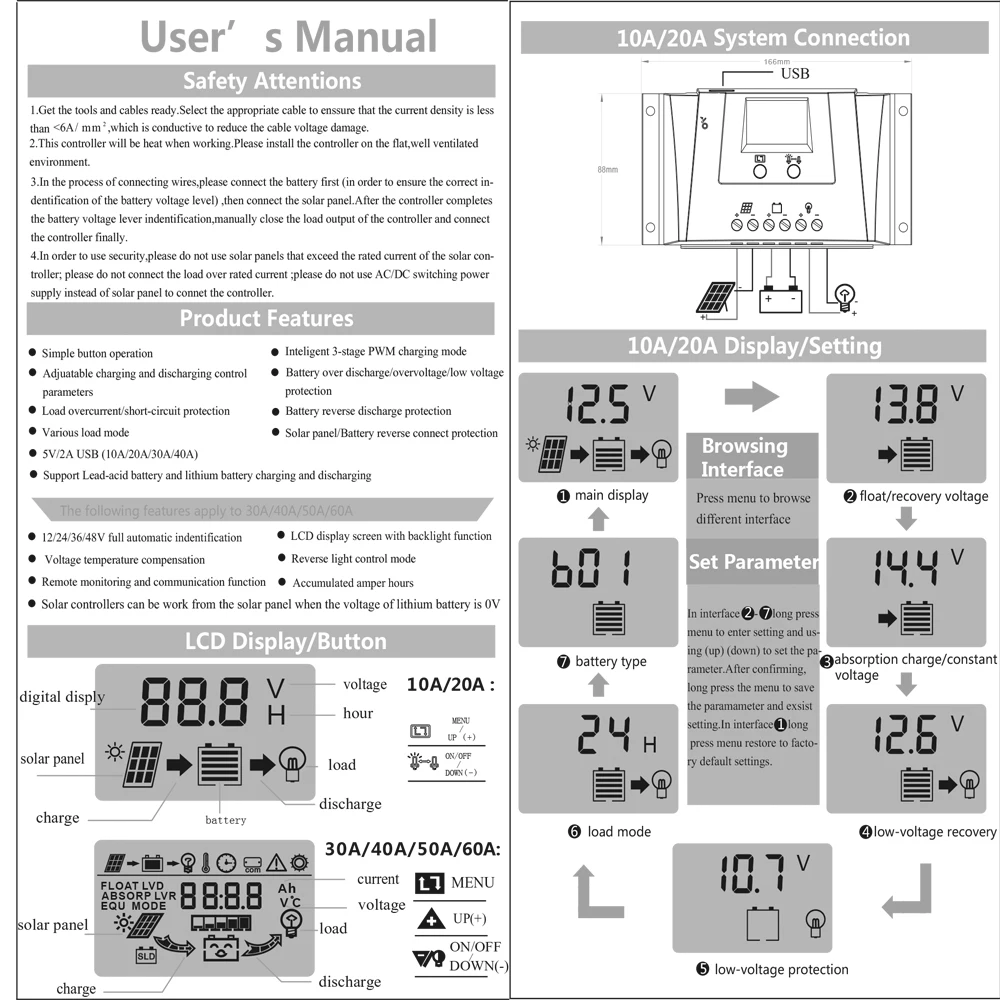

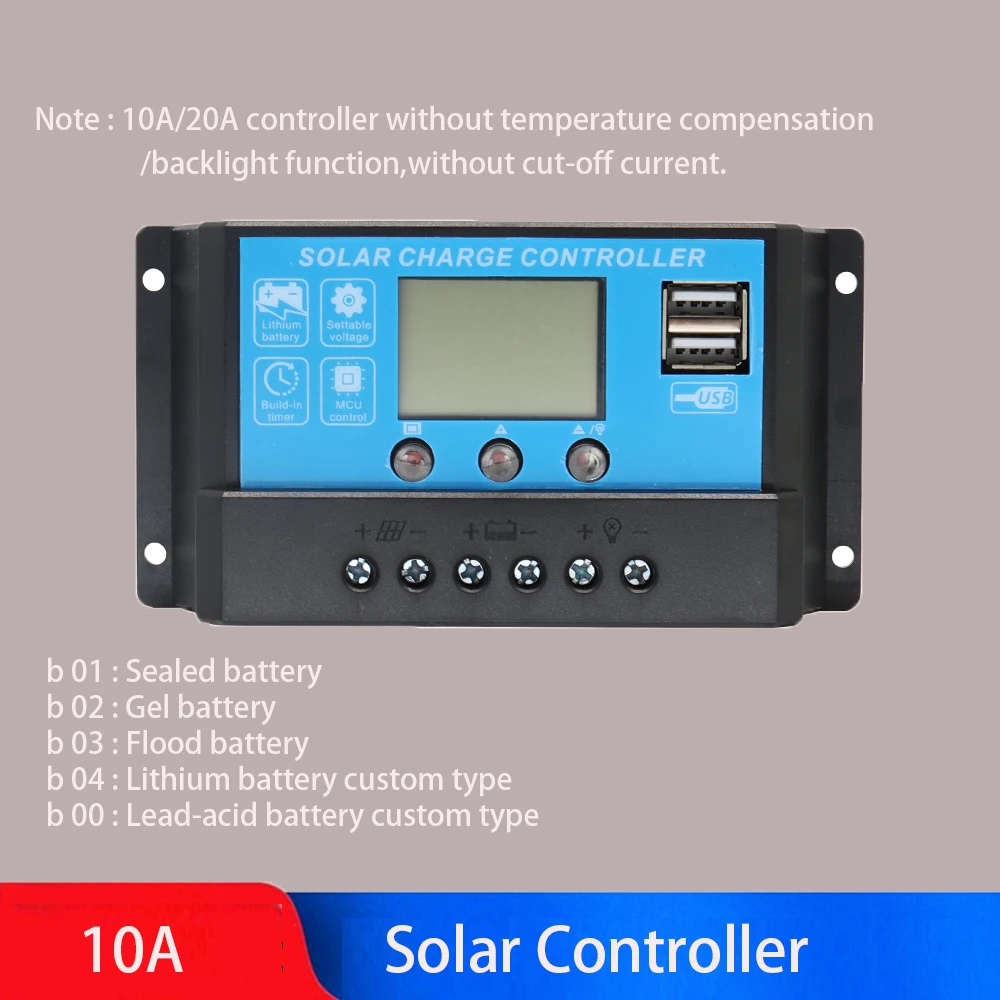

Note : 10A/20A controller without temperature compensation /backlight function,without cut-off current.
b 01 : Sealed battery
b 02 : Gel battery
b 03 : Flood battery
b 04 : Lithium battery custom type
b 00 : Lead-acid battery custom type

Additional Information

Weight 35 oz
Dimensions 5 in
Brand Name

xinpuguang

Origin

Mainland China

Number of Panels

2

Flexible Solar Panel

Yes

Foldable Solar Panel

No

Type

Solar Panel

Module Efficien

19.1%

Model Number

solar Panel

Size

1060*277*2.5mm

Material

Monocrystalline Silicon

Nominal Capacity

None

Number of Cells

32 cells

Max. Power

100 watt

is_customized

Yes

Certification

weee

16V 50W Solar Panel Size

1060*277*3mm

19.8V 50W Solar Panel Size

820*370*3mm,
