200w 100w 400w ETFE PET Flexible Panels

Shipping Information

1, For Europe Memeber Countries Client: Ship from Spain or Czech or Beligum Or France or Poland Warehouse, 2-7 Working days arrival via DHL or Correos or GLS or PPL.

2, For Russia: Ship from Moscow Warehouse, Fast arrival via Russia Post.

3, For Ukraine Client: Ship from Ukraine Warehouse, Fast Delivery

4, For Canada client: Ship from Canada Warehouse via UPS, Fast delivery

5, For Australia Client: Ship from Australia Warehouse, Fast Delivery

6, For Braizl Client: Our Brazil Warehouse will Open Very Soon.

More Oversea Warehouse will open later.

1, Model:BSP 32-100

2, Maximum Power(Pmax): 100W

3, Maximum Power Voltage(Vmp):18.00V

4, Maximum Power Current (Imp):5.55A

5, Open-Circuit Voltage (Voc): 20.00V

6, Short-Circuit Current (Isc):6.10A

7, Maximum System Voltage: DC1000V

8, Maximum Series Fuse:15A

9, Nominal Operating Cell Temp.(NOCT):-45 to

80

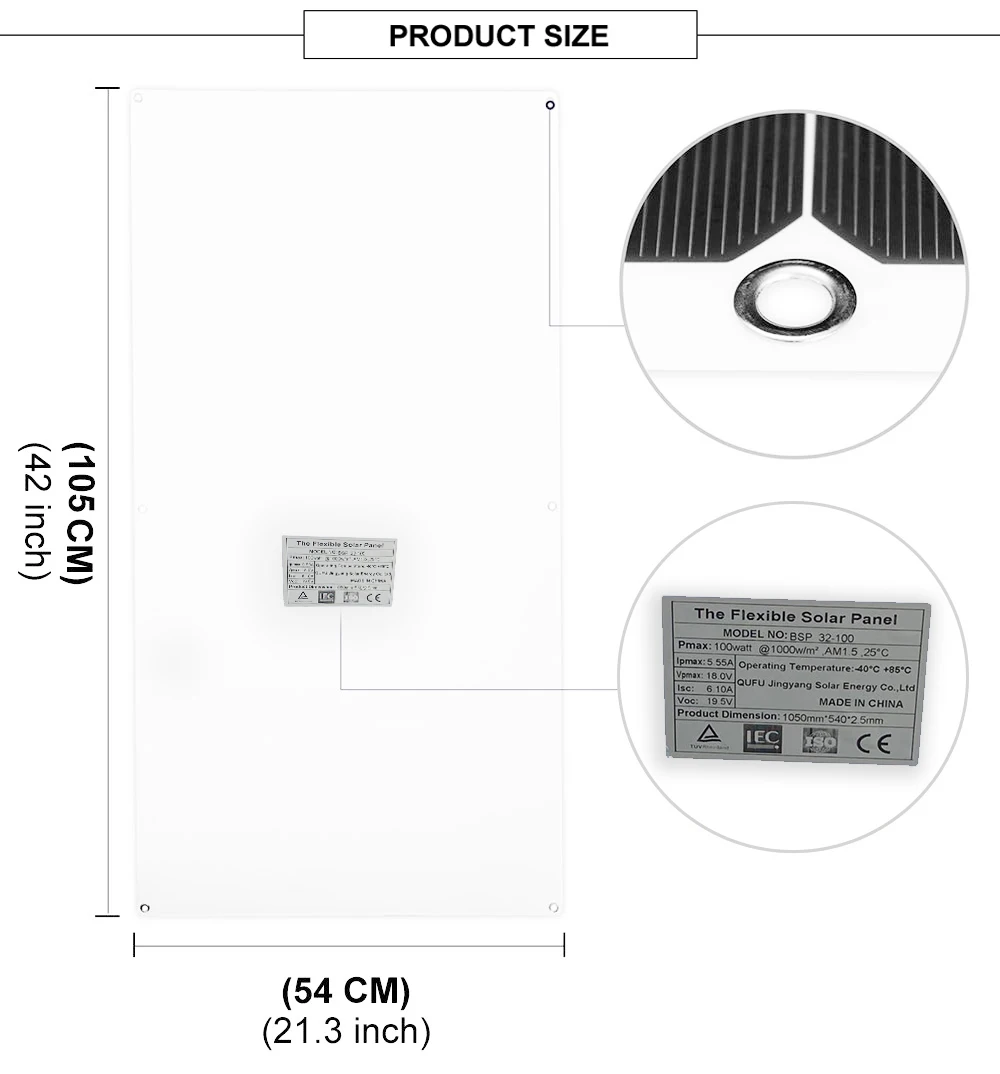

10, Dimensions:1050mm*540mm*2.5mm

11, Panel Weight: 1.85KG

11, Diode: by-pass diode inside connection box

(The above data is based on the laboratory standard test environment) For field connections,use minimun No.13AWG copper wires insulated for a minimum 90

Standard Test Conditions: AM=1.5 IRRADIANCE=1000W/m2 Temp.=25 (The figures are manually measured and there is a certain error with +-5%.)
